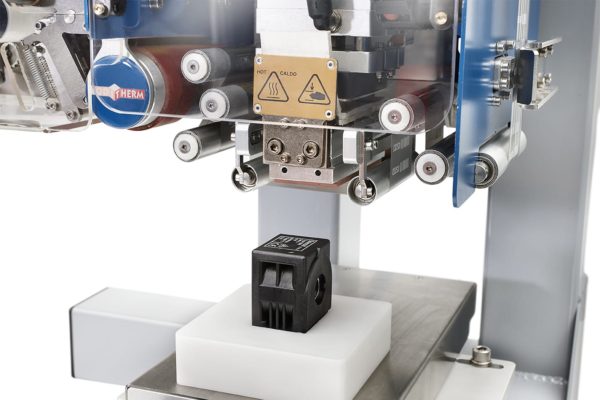

Coditherm Pad

Coditherm PAD is recommended for special applications because the printing system transfer device can work on particular or very small surfaces.

APPLICATIONS

TECHNICAL SPECIFICATIONS

  • Max. printing area: 40 x 90 mm.
  • Printing definition: 12 dots/mm (300dpi).
  • Printing speed: up to 80 mm/s
  • Recommended ribbon type: POSY types for printing on slightly rough surfaces; RINK types for printing on glossy surfaces.
Other models

CONTACT US

CALL US

+39 011.94778.1

Accessories

SMALL FLAT PAD

For printing in small areas (max. 20 x 30 mm) on hard flat plastic surfaces.

CURVED PAD

For printing in long, narrow areas (e.g. cables and tubes).

LARGE FLAT PAD

For printing on flexible and absorbent surfaces, such as fabric, cardboard and leather (max. area 40 x 90 mm).

SOLUTIONS

TAGS AND SEALS

Coditherm prints variable data directly on the surfaces of tags and seals (also characterised by plastic substrates of different nature, such as polypropylene, polyethylene or even the most slippery plastic-coated surfaces). With Coditherm you can print on:

– food product seals

– container closing seals.

Download product bullettin

MEDICAL COMPONENTS

Coditherm is particularly suited for extremely delicate medical, hospital which must be handled with care: using no liquidinks or solvents guarantees cleanness of the concerned surface and the printing environments. Furthermore, printing is permanent and resistant to exterior elements. With Coditherm you can print:

– on objects such as medical bags, vials, test tubes (on side or lid), syringes, pipettes, catheters, tubes and filters

– on fabrics, such as bandages, orthopaedic support stockings, orthopaedic belts and medical bags

– on toothbrush handles for customising the object.

ROUND PLASTIC OBJECTS

By having created a special version, Eidos promotes rolling of round objects along a roller to obtain perfect alignment between the hot compression point and the printing movement. With Coditherm you can print:

– on round or slightly conical plastic objects, like caps, plastic tubes or round paintbrushes

– directly on tubular objects, light metal pipes coated with plastic or thick layers of paint. If the coat of paint is thin the surface must be heated to approximately 45°C.

CODITHERM SERIES

CODITHERM FLAT

Printer for flat or slightly shaped surfaces.

CODITHERM H-PAD

High-power pad printer for printing in recessed areas of boxes.

CODITHERM ROUND

Printer for round or slightly conical objects.

CODITHERM I-ROLLER

High energy printer for flat or slightly shaped surfaces.

RIBBONS PER CODITHERM

Specific ribbons for inked ribbons and receptors.
